简要描述：应用领域广泛适用于电缆管道、发电站、工业和配电设施、以及用户网络的电力供应。也可用于在砖墙、混凝土中，但不能受到震动、摇摆、扭转、往复弯曲移动等高频率机械力的影
新闻中心
应用领域
广泛适用于电缆管道、发电站、工业和配电设施、以及用户网络的电力供应。也可用于在砖墙、混凝土中，但不能受到震动、摇摆、扭转、往复弯曲移动等高频率机械力的影响。可安装敷设在露天、敷设于地下及户外场合。
Application area
It is widely used for power supply in cable ducts, power stations, industrial and power distribution facilities, and user networks. It can also be used in brick walls and concrete, but it cannot be affected by high-frequency mechanical forces such as vibration, swing, torsion, and reciprocating bending movement. It can be installed and laid in the open air, underground and outdoor occasions.

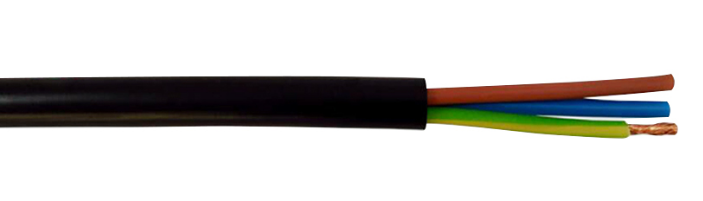

结构
·导体
裸铜丝绞合导体，符合EN60228标准中第1类、2类或5类导体要求
·绝缘
特殊PVC绝缘料，符合EN50363-3标准要求
·芯线标识
采用不同颜色标识，可包含有绿/黄接地线
·外护套
特殊PVC护套料，符合EN50363-4-1标准要求
·护套标识
黑色护套
Structure
·Conductor
Bare copper wire stranded conductor, which meets the requirements of Category 1, Category 2 or Category 5 conductors in the EN60228 standard
·insulation
Special PVC insulation material, in line with EN50363-3 standard requirements
·Core identification
Use different color markings, can include green/yellow grounding wires
·Outer sheath
Special PVC sheath material, in line with EN50363-4-1 standard requirements
·Jacket logo
Black sheath
技术参数
·额定电压U0/U
0.6/1kV
·测试电压
4000V
·运行温度
-15℃至+70℃
·最小弯曲半径
12×电缆直径Ф
technical parameter
·Rated voltage U0/U
0.6/1kV
·Test voltage
4000V
·Operating temperature
-15°C to +70°C
·Minimum bending radius
12×Cable diameterФ
特性
·环保
符合RoHS指令
·阻燃性
符合EN60332-1-2
Characteristic
·environmental Protection
Compliant with RoHS directive
·Flame retardancy
Comply with EN60332-1-2
参照标准
IEC 60502-1 Ed2.1:2009
DIN VDE 0276-603:2010
HD 603-3G:2003
IEC 60332-1-2:2015
EN 62230:2013
EN 50395:2005
EN 50396:2005
Reference standard
IEC 60502-1 Ed2.1:2009
DIN VDE 0276-603:2010
HD 603-3G:2003
IEC 60332-1-2:2015
EN 62230:2013
EN 50395:2005
EN 50396:2005
